| STANDARD DIMENSIONS | |||||
|---|---|---|---|---|---|
| Model | Propeller Diameter | No of blades | Motor size | Airfloe at 0 Pa | Specific performance at 0 Pa |
| EMS36 | 915 mm [52"] | 6 | 0.55 or 0.75 kw | 20,080 to 22,450 m3/h | Up to 22.5 m3/h/W |
High volume air circulations.
*Propeller is available in stainless steel, galvanised steel and pre-coated galvanised steel.
*Special threaded bushes on fan's side panels permit the fan to be easy hung.
*Low noise and vibration.
>| STANDARD DIMENSIONS | |||||
|---|---|---|---|---|---|
| Model | Propeller Diameter | No of blades | Motor size | Airfloe at 0 Pa | Specific performance at 0 Pa |

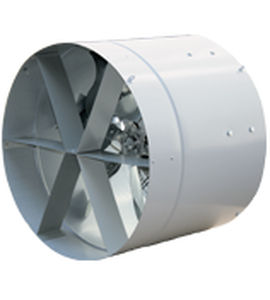

| EDC18 | 480 mm [18"] | 6 | 0.11 or 0.24 kw | 2,600 to 3,950 m3/h | Up to 16.1 m3/h/W |
| EDC24 | 600 mm [50"] | 6 | 0.37 kw | 7,400 m3/h | Up to 11.2 m3/h/W |
Air blower designed to break up and mix stratified air.
*Propeller is statically and dynamic balanced for low noise and vibration.
*Special hooks on housing permit the blower to be easily hung.
*pre-coated galvanised steel housing for extra corrosion resistance.
>| STANDARD DIMENSIONS | |||||
|---|---|---|---|---|---|
| Model | Propeller Diameter | No of blades | Motor size | Airfloe at 0 Pa | Specific performance at 0 Pa |
| EMT30 | 760 mm [18"] | 6 | 0.37 or 0.55 kw | 13,570 to 16,680 m3/h | Up to 20.2 m3/h/W |
A jet fan ideally suited for distributing and mixing heated air throughout the whole structure
by means of a plastic duct.
*The unique propeller design is self cleaning.
*Jet fan is powerful in reducing heating cost.
*With jet fan the life span of plastic duct is increased.
>| STANDARD DIMENSIONS | |||||
|---|---|---|---|---|---|
| Model | Propeller Diameter | No of blades | Motor size | Airfloe at 0 Pa | Specific performance at 0 Pa |
| MSF-52 | 1,320 mm | 4 | 2.0 hp | 44,803 m3/h | 25.3 m3/wh |
Family member of the time proven Euroemme fan range.
*Large cooling footprint.
*Made in corrosion resistant material Munters Protect.
*Statically and dynamically balanced propeller.
*Belt driven propeller resulting in low noise levels.
*Horizontal support bar reduces stress on fan housing when mounted overhead.
*Motor positioned in air stream for maximum cooling.
*Mounting kits for ease of mounting.
